BUBBLERS
BUBBLERS
HISIL - HITECH SCIENTIFIC Glass Industries - one of the India's largest manufacturers of laboratory glassware offer a comprehensive range of Laboratory Bubblers.
Bubblers
+

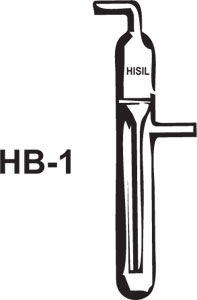

HB-1 Bubblers
| Cat No. | Description |
|---|---|
| 0351 | Used to monitor gas flow to reaction while providing a vent of the atmosphere. Reservoir head prevents oil from being sucked back into the system. |
Bubblers
+

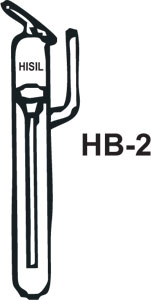

HB-2 Bubblers

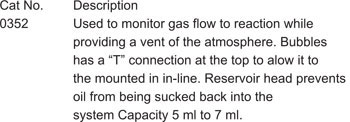

| Cat No. | Description |
|---|---|
| 0352 | Used to monitor gas flow to reaction while providing a vent of the atmosphere. Bubbles has a "T" connection at the top to allow it to be mounted in-line. Reservoir head prevents oil from being sucked back into the system. Capacity 5 ml to 7 ml. |
Bubblers, Nitrogen Bubblers - Type A
+

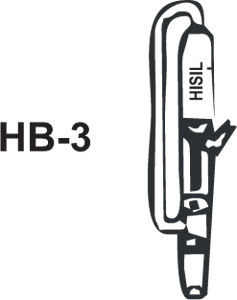

HB-3 Bubblers, Nitrogen Bubblers - Type A
| Cat No. | Cone Joint | Cap. Ml |
|---|---|---|
| 0353 | 14/19 | 5 ml to 7 ml |
| 0354 | 19/26 | 5 ml to 7 ml |
| 0355 | 24/32 | 5 ml to 7 ml |
Bubblers Nitrogen Bubblers
+

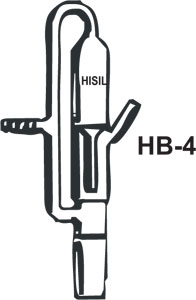

HB-4 Bubblers Nitrogen Bubblers

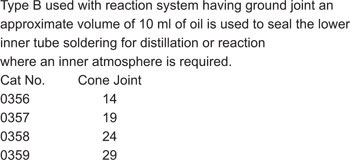

Type B used with reaction system having ground joint; an approximate volume of 10 ml of oil is used to seal the lower inner tube soldering for distillation or reaction where an inert atmosphere is required.
| Cat No. | Cone Joint |
|---|---|
| 0356 | 14 |
| 0357 | 19 |
| 0358 | 24 |
| 0359 | 29 |
Vacuum Trap. One - piece - bent top system
+

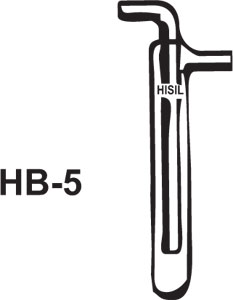

HB-5 Vacuum Trap. One - piece - bent top system

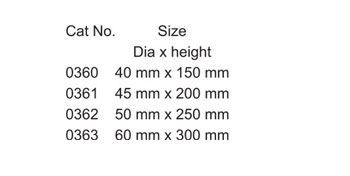

| Cat No. | Size (Dia x Height) |
|---|---|
| 0360 | 40 mm x 150 mm |
| 0361 | 45 mm x 200 mm |
| 0362 | 50 mm x 250 mm |
| 0363 | 60 mm x 300 mm |
Reverse - flow Bubblers
+

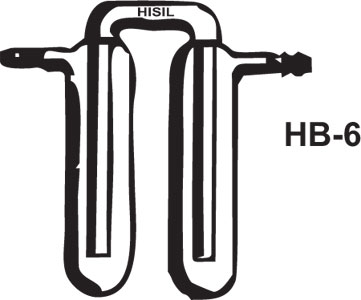

HB-6 Reverse - flow Bubblers monitors gas flow into a system
| Cat No. | Size (Height x Width) |
|---|---|
| 0364 | 135 mm x 125 mm |
Vacuum trap
+

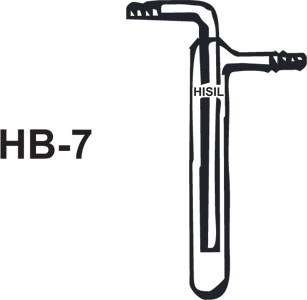

HB-7 Vacuum trap - one piece bent top stem with hose connectors

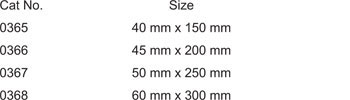

| Cat No. | Size |
|---|---|
| 0365 | 40 mm x 150 mm |
| 0366 | 45 mm x 200 mm |
| 0367 | 50 mm x 250 mm |
| 0368 | 60 mm x 300 mm |
Mini gas Bubblers
+

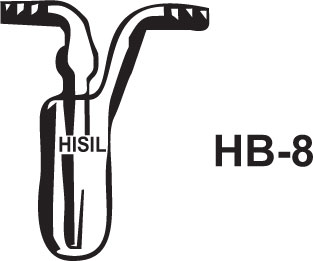

HB-8 Mini gas Bubblers
| Cat No. | Size |
|---|---|
| 0369 | 40 mm x 15 mm |
"U" tube cone bubblers (N2)
+

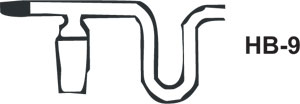

HB-9 "U" tube cone bubblers (N2)

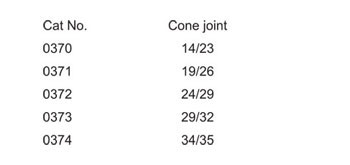

| Cat No. | Cone Joint |
|---|---|
| 0370 | 14/23 |
| 0371 | 19/26 |
| 0372 | 24/29 |
| 0373 | 29/32 |
| 0374 | 34/35 |
Oil Bubblers in line (N2)
+

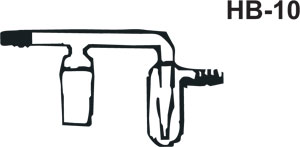

HB-10 Oil Bubblers in line (N2)

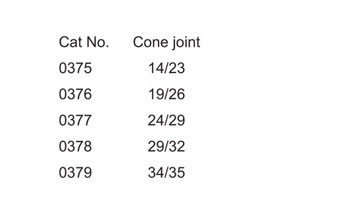

| Cat No. | Cone Joint |
|---|---|
| 0375 | 14/23 |
| 0376 | 19/26 |
| 0377 | 24/29 |
| 0378 | 29/32 |
| 0379 | 34/35 |
